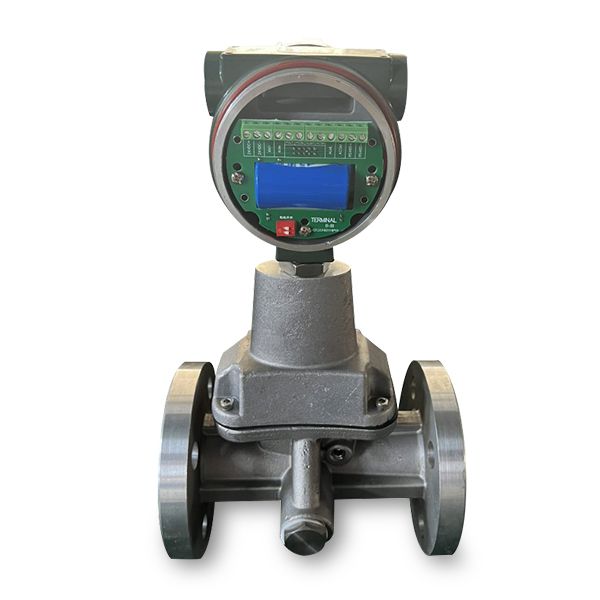

Vortex Flow Meter
Vortex Flow Meter
Vortex flow meters are a well established flow technology for liquid, steam and gas applications. They can offer an accurate and cost-effective metering solution, so that they are the preferred product for oilfield and city natural gas metering and trade metering at present. Our company adopts advanced investment casting technology, which is integral casting without welding.
Working Environment
- Temperature Rating: -30℃-+55℃
- Relative Humidity: 5%-95%
- Pressure rating: 86KPa-106KPa
- Medium Temperature Range: -20℃-+70℃
- Nominal Pressure: 1.6/2.5/4.0/6.3MPa
Specifications
| Size DN (mm) | Flow Rate (m3/h) | Operating Pressure (MPa) | Accuracy | Dimension (mm) |
| 15 | 1.0-10 | 1.6 2.5 4.0 6.3 10 16 | 1.0 1.5 | 162 |
| 20 | 1.5-15 | 162 | ||
| 25 | 3.0-30 | 182 | ||
| 32 | 6.0-60 | 200 | ||
| 40 | 7.0-70 | 233 | ||
| 50 | 12-150 | 300 | ||
| 80 | 40-400 | 330 | ||
| 330 | ||||
| 100 | 60-650 | 410 | ||
| 150 | 150-1500 | 516 | ||
| 200 | 240-3600 | 1.6;2.5;4.0 | 700 |
We are one of the leading stainless steel investment casting foundries in China, specializing in custom stainless steel precision castings, mainly for industrial valve industry. We can also provide custom casting products according to customer requirements.
Our stainless steel investment castings have attracted customers from the United States, the United Kingdom, Canada, Australia and other countries with competitive prices and excellent services. These foreign companies purchase our products in China and enjoy superior quality and cost-effectiveness.
Metal products and parts manufactured by investment casting include turbine blades, medical equipment, firearm components, gears, golf club heads, and many other machine parts with complex geometric shapes.

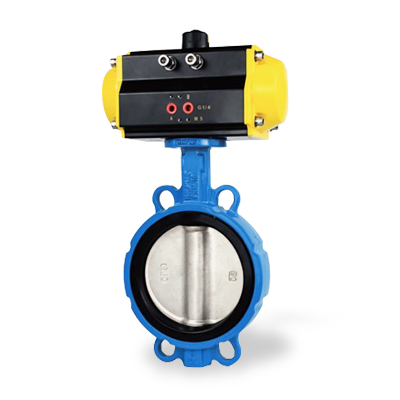

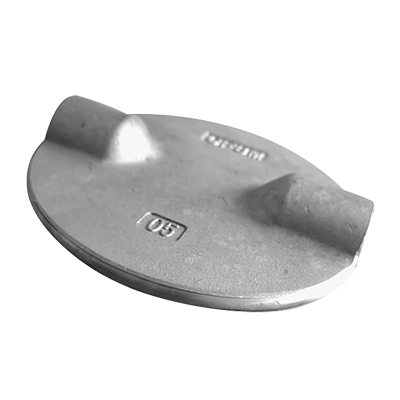

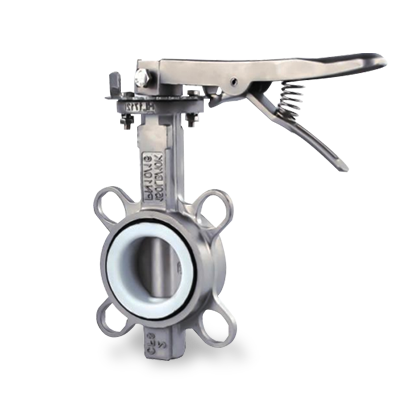

We currently offer processing services including investment casting, sand casting, and machining, to produce flow control products such as butterfly valves, ball valves, butterfly valve discs, etc.
A flow control valve regulates and controls the flow of fluids within a pipeline system and is typically used to adjust the flow rate within pipes.
Our flow control products are primarily used in industries such as aerospace, shipbuilding, oil exploration and transportation, transportation, pharmaceuticals, medical devices, etc. These industrial valves play a role in fluid shutoff, flow control, diversion, and merging within pipeline systems.
Thanks to our complete range of advanced manufacturing equipment and in-depth production experience, we can produce butterfly valves, ball valves and related valve accessories.
As a specialist stainless steel precision casting foundry, we have a large stock of general industrial valves for fast delivery. We can also custom-manufacture a variety of casting products according to user's drawings and desired materials.
